Giantz 2x Drawer Slides Full Extension Locking 227kg 914-1829mm Length

SKU: DS-76MM-914-SI
Product Type: Home & Garden > DIY > Kitchen & Bathroom DIY
$92.63
$182.99
$92.63
49% off
10 customers are viewing this product
In stock: Ready to be shipped

⟳ Dispatched by Our Partner

Please Note: This product is shipped from our Partner Warehouse and must be ordered separately from other items.

Subtotal: $92.63
Pay securely with

Buy now 4 interest-free installments of $23.16

Description
Description
x

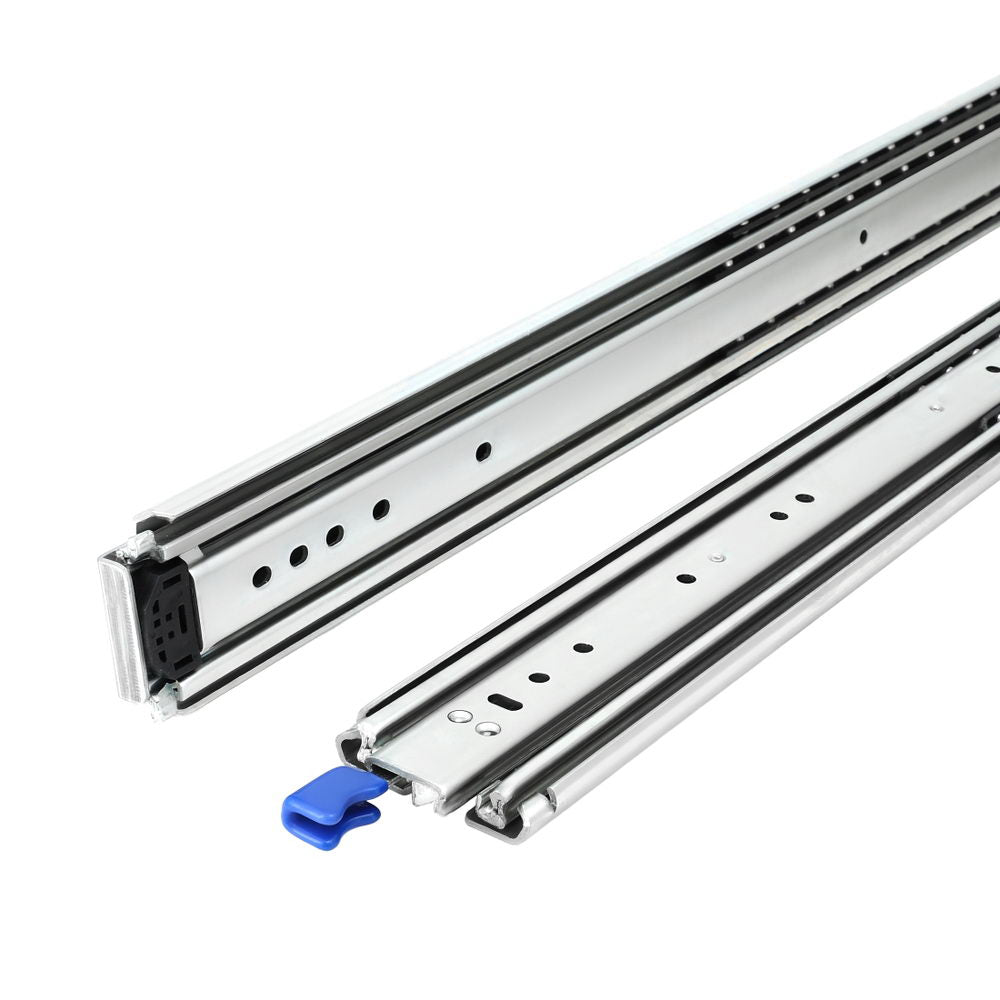

The Giantz Heavy Duty Drawer Slides come as a pair, measuring 76mm in width and 19.5mm in thickness, with a full extension range from 914mm to 1829mm. The three-section ball bearing design ensures smooth and quiet sliding.The secure lock-in and lock-out mechanism keeps drawers safely fixed in the fully closed or fully extended position, preventing accidental overextension or detachment from the tracks. Crafted from robust cold rolled steel with a corrosion-resistant zinc plated finish, these slides support up to 227kg load capacity, providing reliable strength for heavy storage.Ideal for large drawers, cabinets, industrial storage, vehicle fit-outs, and multimedia equipment, these slides are versatile and built to last. Each set includes two slides, 12 x M5 screws, and 12 x M5 screw nuts as a bonus for easy installation.

Features

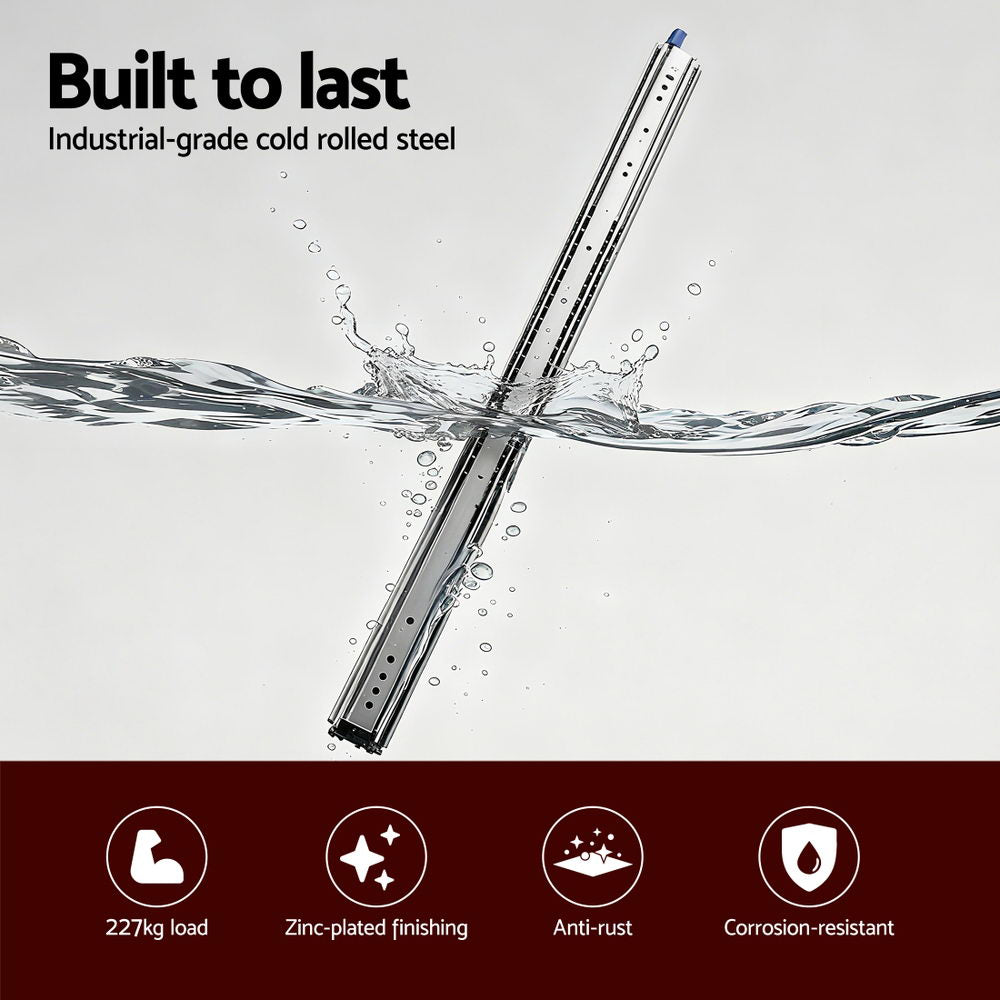

Durable cold rolled steel build

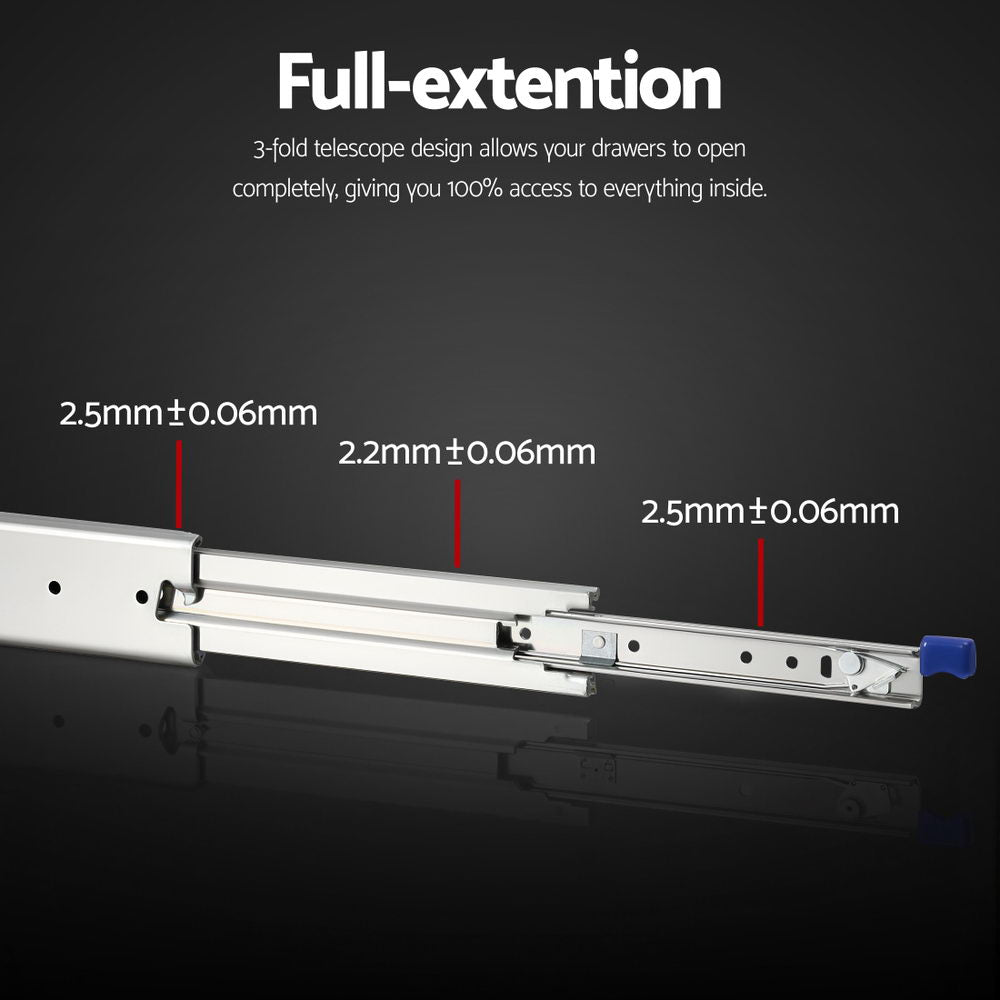

Three-Section Drawer Slides
Heavy duty 227kg load capacity

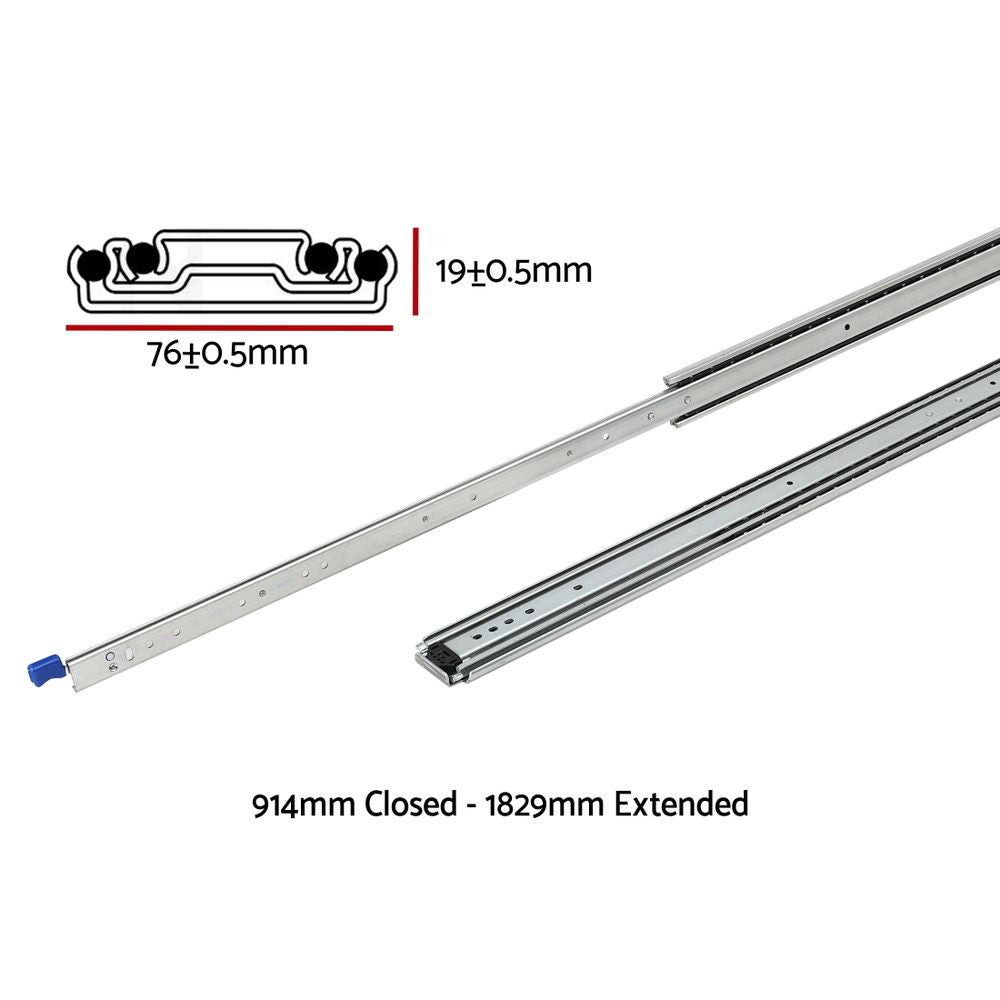

Full extension range 914mm to 1829mm

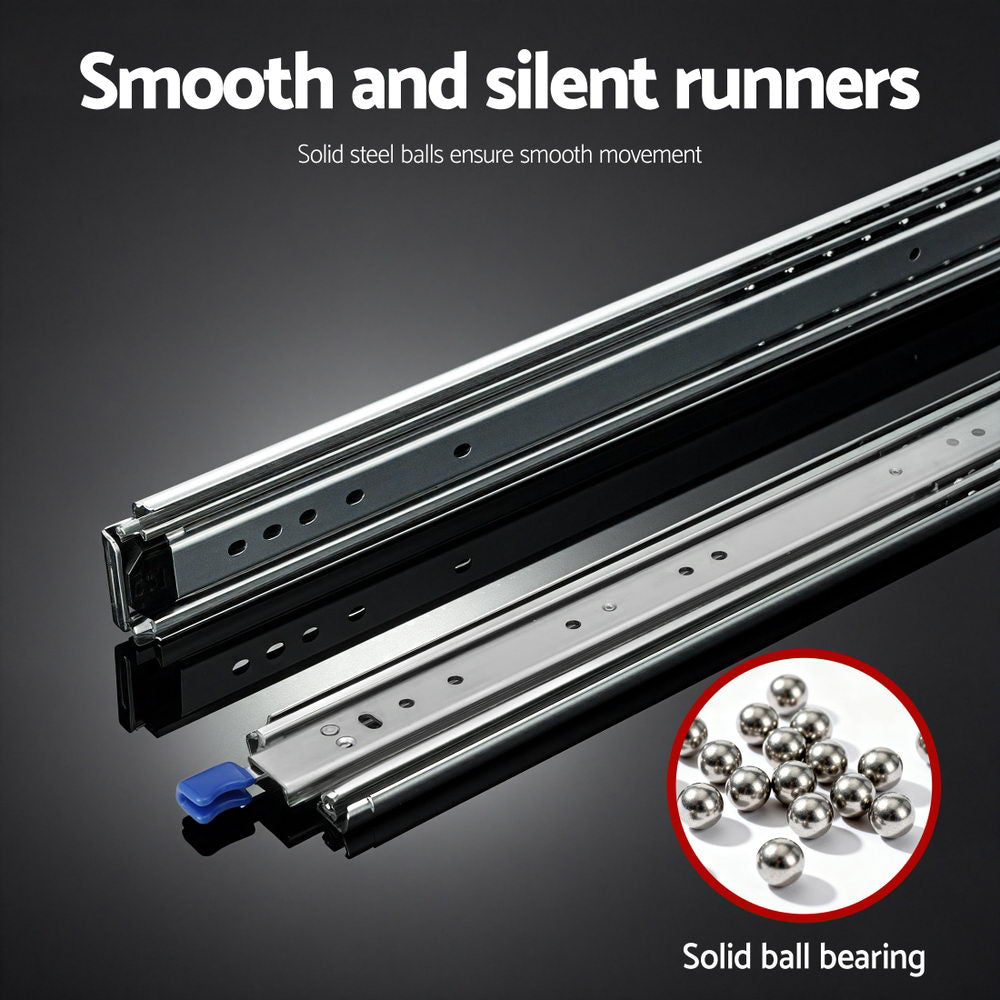

Smooth push and pull without noise
Extra wide 76mm steel rails

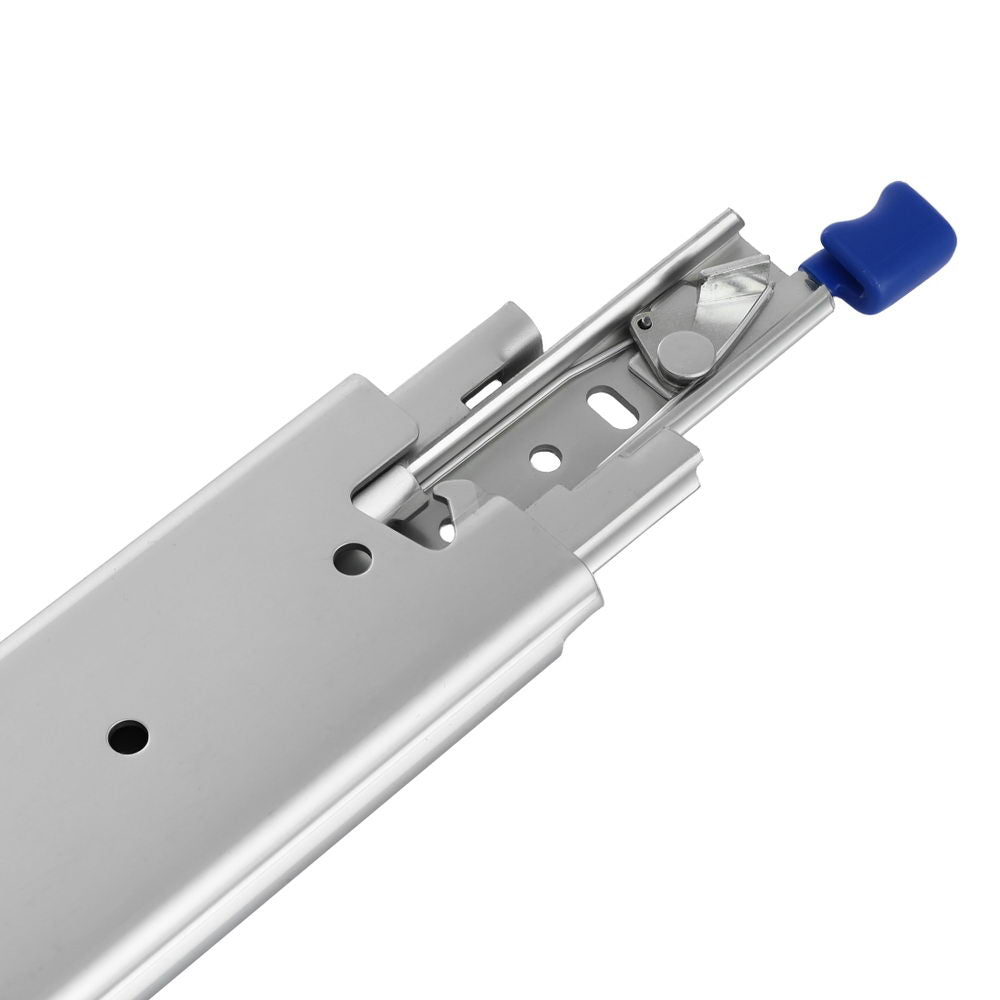

Locking mechanism for secure hold
Corrosion resistant zinc plated finish
Includes screws and bonus nuts
Suitable for large cabinets, spacious drawers, RV,trunk and multimedia installations

Specifications:
Color: Sliver
Material: Cold Rolled Steel
Finish: Zinc Plated
Load Capacity: 227KG
Fully Pull-Out Length: 1828mm
Fold Product Size: 91.4x 7.6 x 1.9 cm
Slide Lock: Support
Assembly Required: No
No. Of package: One

Package Content
Giantz drawer slide X1 pair
M5 screw X12
M5 screw nut X12
User Manual X1

This product comes with 1 year warranty
